CSV3B: Specifications

CSV3B specifications

Size 2" 2" 3" 3" 4" 6" 8" 10" 12"
Type Threaded Flanged Threaded Flanged Flanged Flanged Flanged Flanged Flanged
L 6 7/8 8 1/16 9 13/16 9 13/16 12 5/8 16 5/16 19 11/16 23 13/16 28 1/2
H 4 15/16 6 6 5/16 8 1/16 9 1/2 13 5/16 16 15/16 18 1/8 25
Width 4 3/4 6 1/8 6 7/8 7 7/8 8 3/4 12 3/8 15 3/8 15 15/16 22 7/8
R 1 1/2 3 1/16 2 3/16 3 15/16 4 7/16 5 1/2 6 11/16 7 15/16 9 7/16
Weight 18 25 35 45 65 150 309 329 680

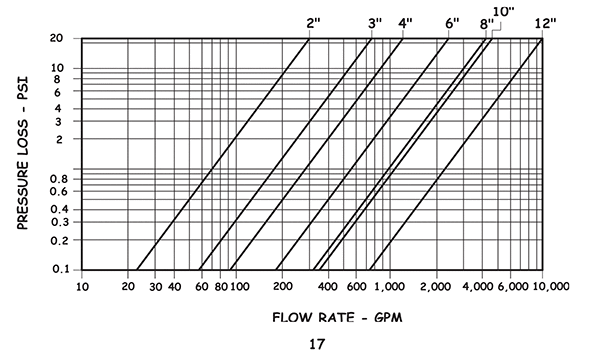

CSV3B specifactions
